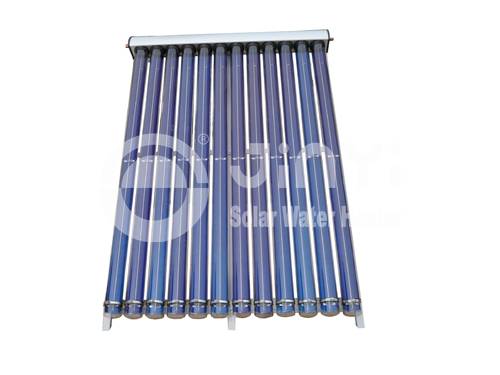

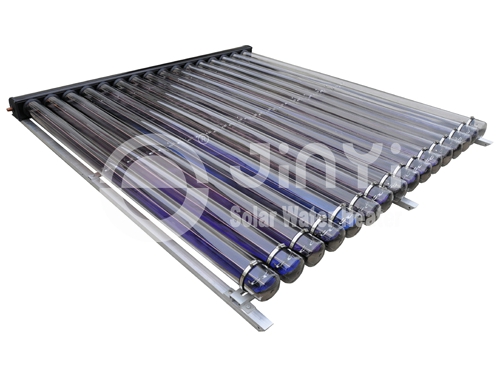

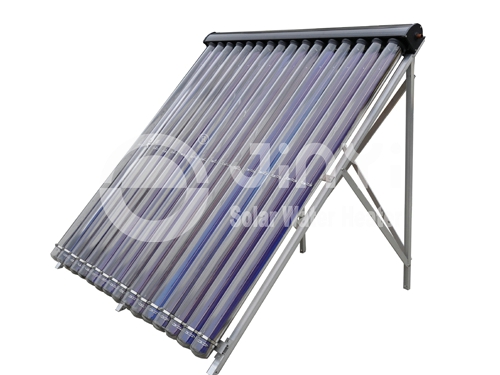

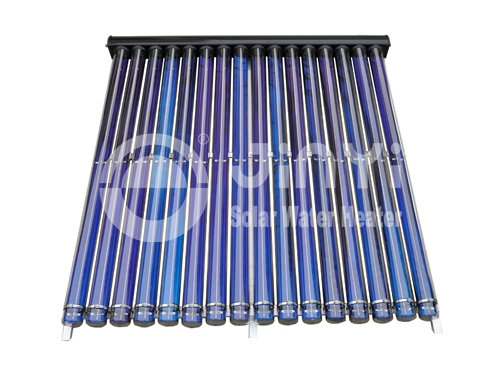

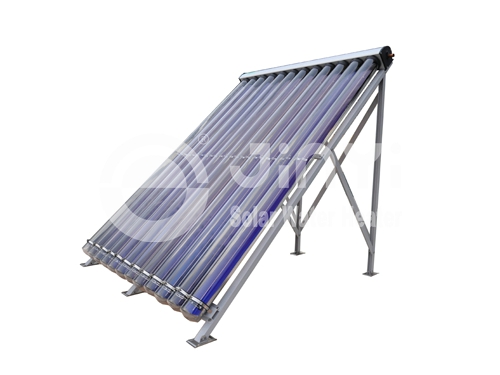

Metal Heat Pipe Solar Collector
Features of Solar Thermal Collector
1.Compared to JHC, JMC and JUC series solar collectors, the absorbing material of this metal heat pipe solar collector adopts metal, which can directly conduct energy to the heat tube and has super transfer efficiency.
2.The space between heat pipe and glass tube can be evacuated, so the solar thermal collector has excellent thermal barrier effect and long lifespan.
3.The glass thickness is 2.8mm, which can effectively resist hail attract
4.This metal heat pipe solar collector consists of metallic glass tubes, header and frame.
5.Sunpu does contract manufacturing for the metal heat pipes.
6.We provide production serial number for each solar thermal collector, which is convenient to accomplish quality control and warranty commitments.
Description

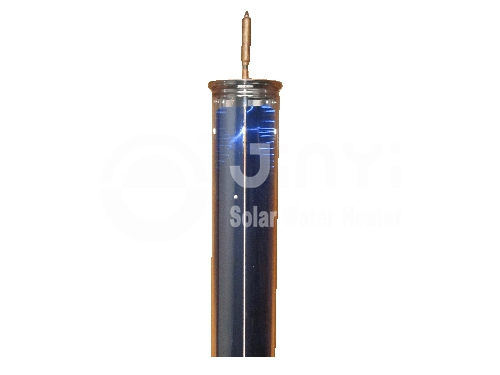

The metal heat pipe solar collector is the most efficient one among the heat pipe solar thermal collectors. The heat tubes adopt fully enclosed structure and are made of high-quality red copper. Due to the vacuum effect, as long as the temperature of the evaporation section is higher than that of the condensation section (even higher than the freezing temperature), the working fluid will quickly gasify and start up to the condensation section where the heat will be released. This metal heat pipe solar collector possesses superior heat transfer efficiency and unidirectional heat conducting property.
Parameters of Solar Thermal Collector
| Model type |
JSC-100/2000-8 |
JSC-100/2000-16 |
| Tube construction |
Heat pipe vacuum tube with bend absorber |
| Angle of inclination |
35 ° to 90 ° |
| Number of collector tubes |
8 |
16 |
| Absorber area |
1.83 m² |
3.66 m² |
| Aperture area |
1.51 m² |
3.01 m² |
| Gross area |
2.04 m² |
4.08 m² |
| Length x width x height (mm) |
2126x960 x175mm |
2126x1920x175mm |
| Weight |
50 kg |
100 kg |
Selection Note
1.Whether the metal heat pipe solar collector is mounted on flat roof or pitched roof, there is need different roofing connectors.
2.Please guarantee sufficient room to install this solar thermal collector.
3.Detail information, you can refer to our installation instruction or consult the salesman.
Operation and Notes
1.The distance between the rows should comply with the design requirements, so as to avoid blocking.
2.The solar thermal collector should be firmly fixed with the main building structure or collector support.
3.The metal heat pipe solar collector should avoid air drying or exposure for a long time, which will have an influence on the working life.
4.Please periodically check the pressure of the circulating fluid
5.The metal pipes should do heat preservation treatment.
6.Please regularly check the vacuum tube to see if there is any breakage. The damaged part should be replaced in time.
Packaging and Transportation
1.The samples can be packaged in wooden case and cartons.
2.The solar thermal collector is packed in cartons or carton packing with palletizing.
3.Transport by sea.
