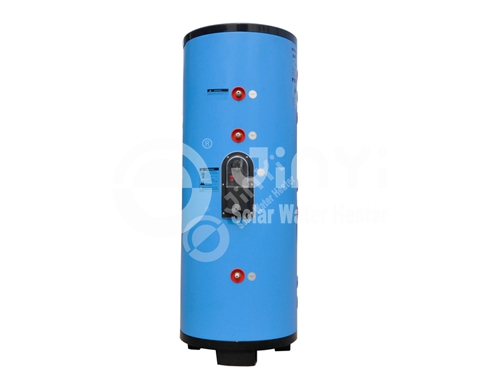

Double Coils Solar Storage Tank
Features of Solar Water Storage Tank
1.This dual-coil solar storage tank adopts stainless steel material as the inner tank, having high temperature resistance and light weight.
2.Both pipe coils and the inner tank accomplish 100% pressure test, so as to make sure that the solar water storage tank is safe and water-tight.
3.This dual-coil solar storage tank uses large-diameter seamless steel tube to accomplish coil heat exchanger, which has small resistance and excellent heat transfer effect.
4.Our solar water storage tank can provide hot water hot water in the cloudy or rainy days due to the electric heating.
5.With magnesium rod protection, it can be used for a long time.
6.This dual-coil solar storage tank connected with the solar collector can form split type solar water heating system.
Description of Dual Coils Tank

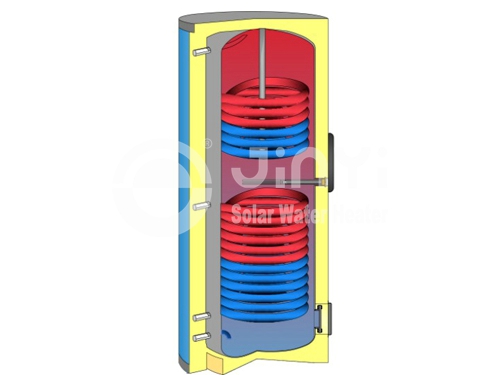

The solar water storage tank contains double coils. One coil is at the bottom of the tank, it is connected to the solar thermal collector for the purpose of realizing heat transfer. The other is at the top of the water tank, which links to the auxiliary heating devices including gas heating and floor heating system.
Component of Dual-coil Solar Storage Tank
This solar water storage tank is composed of stainless steel inner tank, seamless steel pipe coil (2pcs), polyurethane insulation layer, color steel shell, electric heating, magnesium rod, T/P valve and one-way valve.
| Parameters of Dual-coil Solar Storage Tank |
| Model |
Capacity (L) |
Outer tank |
Inner tank |
Packing size(mm) |
G.W./ KG |
N.W./ KG |
LQ. (sets) |
| (mm) |
(mm) |
L |
W |
H |
20' |
40' |
40'H |
| JPT2-100 |
100 |
0.5/φ470 |
1.0/φ370 |
560 |
560 |
1140 |
36 |
39.5 |
80 |
168 |
168 |
| JPT2-150 |
150 |
0.5/φ470 |
1.2/φ370 |
560 |
560 |
1520 |
44 |
49 |
58 |
117 |
142 |
| JPT2-200 |
200 |
0.5/φ550 |
1.5/φ450 |
630 |
630 |
1440 |
55 |
60 |
45 |
84 |
108 |
| JPT2-250 |
250 |
0.5/φ580 |
1.5/φ480 |
680 |
680 |
1540 |
62 |
67 |
36 |
76 |
76 |
| JPT2-300 |
300 |
0.5/φ580 |
1.5/φ480 |
680 |
680 |
1770 |
68 |
74 |
27 |
60 |
72 |
| JPT2-400 |
400 |
0.5/φ700 |
2.0/φ580 |
770 |
770 |
1660 |
90 |
94 |
30 |
63 |
66 |
| JPT2-500 |
500 |
0.5/φ700 |
2.0/φ580 |
770 |
770 |
1970 |
99 |
106 |
24 |
54 |
54 |
| Two stainless steel pipe coil inside: (φ22mm, thickness of 1.0mm; upper coil:100L to 500L length of 10m; lower coil: 100L to 200L length of 10m; 250L to 400L length of 15m; 500L length of 20m). |
Attention
1.Please select proper solar water storage tank according to your actual situation.
2.Please put dual-coil solar storage tank in the basement, attic or other interior places.
Maintenance of Solar Water Storage Tank
1.Please periodically clean the water tank in order to avoid accumulation of silt at the bottom.
2.Please check the safety valve at fixed period in order to guarantee it works normally.
Packaging and Transportation
1.The solar water storage tank can be packed in cartons or carton with palletizing.
2.We transport our dual-coil solar storage tank by sea.
We are a specialized solar water storage tank manufacturer and supplier in China. We not only offer dual-coil solar storage tank but also single coil solar tank. We have the abilities to produce split pressurized water tank with the volume from 100L to 1000L, and the coil made of stainless steel and copper. Our solar water storage tank has been exported to Colombia, United States, Jamaica, Canada, Mexico, UK, Russia, Spain, France, Germany, Poland and other countries. If you need our dual-coil solar storage tank or solar collectors, please feel free to contact us.
