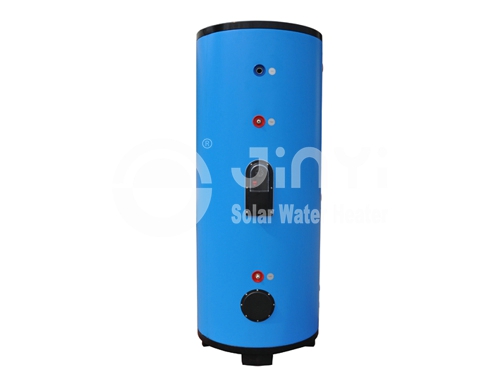

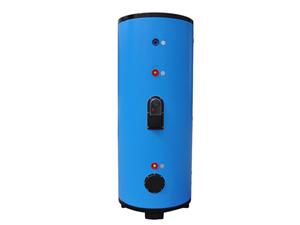

Combined Solar Water Tank
Features of Solar Storage Tank
1.This multi-functional water tank uses stainless steel material to make inner tank, compared to the enamel tank, it can withstand higher temperature and have less weight.
2.Equipped with electrical heating system, this solar storage tank can be used to supply hot water in rainy days.
3.The maximum capacity of this multi-functional water tank can reach 1000L.
4.Our solar storage tank has many advantages of small resistance, excellent heat transfer effect, long service life and easy operation.
5.This multi-functional water tank adopts two-step pressure test to guarantee the safety and reliability.
Description of Solar Storage Tank
The multi-functional water tank is suitable for the collection and storage of hot water, widely used in solar heating projects. This device has three coils, two of them are at the bottom, one is connected to the solar collector, and the other links to the air. The remaining one at the top of the solar storage tank is connected to the other auxiliary heating system, such as gas heating and floor heating.
Component of Multi-Functional Water Tank
This multi-functional solar storage tank consists of stainless steel inner tank, seamless steel pipe coil (3pcs), polyurethane insulation layer, color steel shell, electric heating system, magnesium bar, T/P valve and one-way valve.
| Parameters of Multi-Functional Water Tank |
| Model |
Capacity (L) |
Outer tank |
Inner tank |
Packing size(mm) |
G.W./ KG |
N.W./ KG |
LQ. (sets) |
| (mm) |
(mm) |
L |
W |
H |
20' |
40' |
40'H |
| JPT3-500 |
500 |
0.5/φ700 |
2.0/φ580 |
770 |
770 |
1970 |
99 |
106 |
24 |
54 |
54 |
| Three stainless steel pipe coil inside: (φ22mm, thickness of 1.0mm; upper coil: length of 10m; lower coil: 500L length of 20mx2). |
Attention
1.Please select the solar storage tank according to the actual requirements of your family.
2.Please put the water tank in the basement, attic or other interior places.
Maintenance of Multi-Functional Water Tank
1.In order to ensure the solar storage tank works normally and efficiently, you should maintain regularly and remove the dirt from the water.
2.Please replace the magnesium rod once a year or two years to ensure the safety.
3.Please inspect the safety valve at fixed period to guarantee it works normally.
Packaging and Transportation
1.The solar storage tank can be packed in cartons or carton with palletizing.
2.Transport by sea
Founded in 2008, Jiaxing Jinyi Solar Energy Technology Co., Ltd. is a professional multi-functional water tank manufacturer and supplier in China. Our main products include solar thermal collector, solar storage tank, heat pipe solar collectors and solar water heating systems, solar water heater accessories and solar evacuated tubes. We supply high-quality solar water heaters and solar storage tank with reasonable price, and also offer OEM service and responsible after-sale services. If you are interested in our multi-functional water tank, please visit our website or contact us directly.
