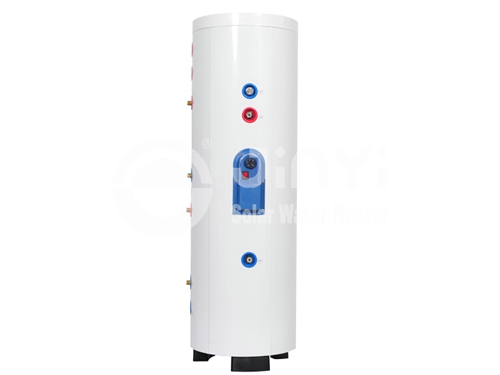

No Coil Solar Storage Tank
Features
1.The pressurized water tank adopts fully automatic numerical control press technology to achieve precise punching.
2.This solar storage tank with no coils can realize direct circulation and obtain good heat exchange effect.
3.The stainless steel material is used to make the inner tank, featuring in high temperature resistance and light weight.
4.The pressurized water tank passes through pressure-bearing impulse test, with the advantages of acid resistance, anti-aging, good corrosion resistance and no pollution.
5.This solar storage tank is installed at floor. The water tank, boiler and the solar collector are installed separately and no influence from each other.
6.There is the magnesium rod inside the tank to extend the service life.
7.Equipped with electrical heating system, this pressurized water tank can supply hot water in rainy days.
8.This solar storage tank has flange inspection opening for convenient check and easy maintenance.
Description of Pressurized Water Tank
The solar storage tank without coils is used to gather and store hot water produced by the solar thermal collector. When the water temperature can not reach the set temperature, the system will automatically start the air energy or gas system to ensure a constant water temperature in the pressurized water tank.
Component of Solar Storage Tank

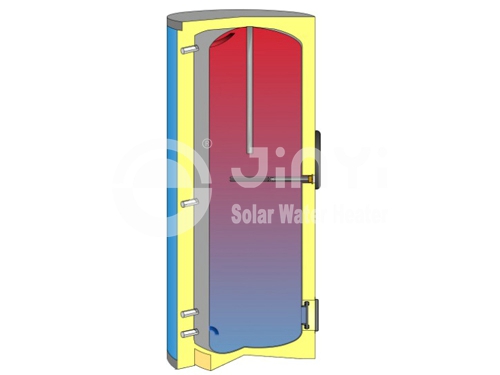

This water tank is composed of stainless steel inner tank, polyurethane insulation layer, color steel shell, electric heating system, magnesium rod, T/P valve and one-way valve.
Parameters of Pressurized Water Tank (no coil) |
Model |
Capacity (L) |
Outer tank |
Inner tank |
Packing size(mm) |
G.W./ KG |
N.W./ KG |
LQ. (sets) |
(mm) |
(mm) |
L |
W |
H |
20' |
40' |
40'H |
JPT0-100 |
100 |
0.5/φ470 |
1.0/φ370 |
560 |
560 |
1140 |
27 |
30.5 |
80 |
168 |
168 |
JPT0-150 |
150 |
0.5/φ470 |
1.2/φ370 |
560 |
560 |
1520 |
35 |
40 |
58 |
117 |
142 |
JPT0-200 |
200 |
0.5/φ550 |
1.5/φ450 |
630 |
630 |
1440 |
46 |
51 |
45 |
84 |
108 |
JPT0-250 |
250 |
0.5/φ580 |
1.5/φ480 |
680 |
680 |
1540 |
53 |
58 |
36 |
76 |
76 |
JPT0-300 |
300 |
0.5/φ580 |
1.5/φ480 |
680 |
680 |
1770 |
59 |
65 |
27 |
60 |
72 |
JPT0-400 |
400 |
0.5/φ700 |
2.0/φ580 |
770 |
770 |
1660 |
81 |
85 |
30 |
63 |
66 |
JPT0-500 |
500 |
0.5/φ700 |
2.0/φ580 |
770 |
770 |
1970 |
90 |
97 |
24 |
54 |
54 |
Maintenance of Solar Storage Tank
1.The pressurized water tank should be cleaned regularly in order to ensure it works normally and efficiently.
2.You must change it if the magnesium bar is run out.
3.Please periodically check the safety valve to make sure it works normally.
Packaging and Transportation
1.The solar storage tank can be packed in cartons or carton with palletizing. While the sample may be delivered in wooden case with carton.
2.We usually transport our pressurized water tank by sea
We are a professional manufacturer and supplier of solar storage tank in China. We not only offer pressurized water tank, but also have single coil solar storage tank, dual-coil storage tank, and multi-functional water tank for your choice. We have received CE and Solar Keymark certificate. Our solar storage tanks have been exported to UK, Romania, France, Poland, Switzerland, Sweden, Italy, Germany, Norway, USA, Canada, Mexico, Thailand and South Africa.
