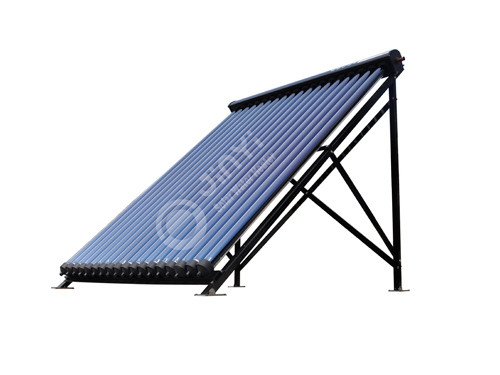

Heat Pipe Solar Collector

Features
1.This solar hot water collector is combined with the architecture easily and has a long service life. It can be widely applied to various sizes and uses of solar collector systems.
2.Our heat pipe solar collector can work normally at minus 40 degrees. It can avoid the heat pipe freezing in winter or at night.
3.The heat only can be transferred from evaporation section to condensation section, which can prevent flowing backwards and dissipating heat.
4.This solar hot water collector can effectively gather heat even in the low sunshine condition. It is also available to the areas without sufficient sunlight.
5.The heat pipe solar collector has many good advantages of fast startup, high heat collecting efficiency, small heat loss and high output temperature as well as powerful freezing resistance.
6.This device uses heat tubes to deliver heat. There is no water in the vacuum tube, so the collector pipes will not freeze in winter.
7.Our solar hot water collector features in easy installation, convenient maintenance, safe and reliable operation.

Description

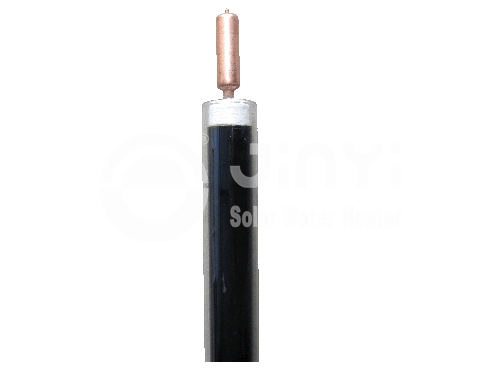

The heat pipe solar collector is composed of heat tubes, metal absorber plate, glass tube, metal cover, spring support and water absorbent. The heat tubes include evaporator section and condenser section. The condenser ends is 24mm, heat exchange efficiency of the JMC series solar hot water collector is higher than that of the JHC series, but the cost is relatively high.

Application
The heat pipe solar collector is applicable to power generation, drying, heating, waste heat recycling and sea water desalination. It can supply domestic hot water and satisfy the requirements of hot water supply for the industrial equipment. The solar hot water collector has the advantages of energy conservation, environmental protection and strong applicability. It generates heat relying on the sunlight or electric heating.

Parameters of Heat Pipe Solar Collector

Model	Heat pipe vacuum tube			Condenser Φ (mm)	Absorber area(㎡)	L/W/H(mm)	Loading Qty (set)
	Dia. / Len.(mm)		Qty(pcs)				20'	40'	40'HQ
JMC-5818-10	58	1800	10	Ø 24	0.805	1980×1025×185	139	288	324
JMC-5818-15	58	1800	15	Ø 24	1.208	1980×1250×185	135	274	310
JMC-5818-18	58	1800	18	Ø 24	1.449	1980×1475×185	110	225	251
JMC-5818-20	58	1800	20	Ø 24	1.610	1980×1625×185	92	193	214
JMC-5818-24	58	1800	24	Ø 24	1.929	1980×1925×185	80	164	186
JMC-5818-30	58	1800	30	Ø 24	2.415	1980×2375×185	67	148	175

Operation and Notes
1.The distance between rows should comply with the design requirements and avoid blocking.
2.The installation angle and position should accord with the design requirements, the heat pipe solar collector should be fixed with the main building structure or collector bracket to prevent slippage, and collector stand should be temporarily fixed.
3.After the solar hot water collector is completely installed, you should achieve leak test.
4.The heat pipe solar collector should not be insolated for a long time, otherwise the lifespan will be shortened.
5.Please regularly check whether the vacuum tubes have coating and damage or not. If any, please replace without delay.

Jiaxing Jinyi Solar Energy Technology Co., Ltd. is a professional manufacturer and supplier of heat pipe solar collector in China. Besides solar hot water collector, we mainly provide solar thermal collector, solar heating collector, non-pressure vacuum tube solar collector, solar storage tank, solar water heating system, solar water heater accessories as well as solar evacuated tubes. Our heat pipe solar collectors have been exported to Kenya, South Africa, Morocco, Venezuela, Brazil, United States, Jamaica, Canada, Mexico, UK, Russia, Spain, France, Germany and Italy.
