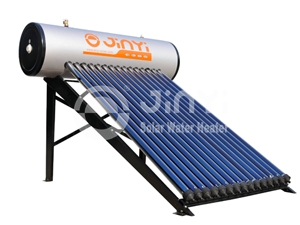

JPH Integrated Heat Pipe Pressurized Solar Heater
Features of Solar Water Heating
1.This integrated pressurized solar water heater adopts electrical heating system as auxiliary energy source. It enables to provide hot water even in cloudy and rainy days.
2.The solar collector uses heat pipe vacuum tubes, so this solar water heating system can operate with reliable and stable performance.
3.This integrated pressurized solar water heater put its water tank and collector in the roof, with simple structure and easy installation.
4.Our advanced version solar water heating system is composed of solar water tank, solar thermal collector, bracket, electrical heating device and controller.
5.This device can provide hot water for daily life.
6.The vacuum tubes absorb the solar energy and convert it into thermal energy, and then transfer to the central heat pipe via the aluminum fin.
Parameters of Solar Water Heating
Model |
Area
(㎡) |
Vacuum tube |
Tank capacity (L) |
Person No. |
Loading Qty (set) |
| Ø(mm) |
Len.(mm) |
Qty(pcs) |
20' |
40' |
40'H |
| JPH-12 |
1.52 ㎡ |
58 |
1800 |
12 |
100 |
2,3 |
62 |
128 |
145 |
| JPH-15 |
1.88 ㎡ |
58 |
1800 |
15 |
124 |
3 |
48 |
100 |
116 |
| JPH-18 |
2.25 ㎡ |
58 |
1800 |
18 |
146 |
3,4 |
44 |
90 |
106 |
| JPH-20 |
2.50 ㎡ |
58 |
1800 |
20 |
161 |
3,4 |
36 |
76 |
90 |
| JPH-24 |
3.00㎡ |
58 |
1800 |
24 |
192 |
4 |
34 |
70 |
82 |
| JPH-30 |
3.75 ㎡ |
58 |
1800 |
30 |
238 |
5 |
24 |
64 |
66 |
Maintenance and Notes
1.If the volume capacity of the solar water heating system is 200L, it will reach 300kg after it is filled with water. Therefore, the clients should consider the weight capacity of the roof when they choose this device.
2.Only the professionals can install this integrated pressurized solar water heater.
3.Please pay attention to the safety when the electricity is involved.
4.Please check the pipe regularly.
Payment and Transportation
1.The advanced version solar water heating system can be paid by T/T and L/C.
2.We use cartons to pack our integrated pressurized solar water heater.
Founded in 2008, Jiaxing Jinyi Solar Energy Technology Co., Ltd. is a professional manufacturer and supplier of solar water heating in China. Our main products include solar collector, solar storage tank, solar water heater accessories and solar evacuated tubes. We manufacture our integrated pressurized solar water heaters according to the global certificates of ISO 9001:2008, CE, Solar Keymark and SRCC. If you are interested in our solar water heating system, please contact us directly.
