JNZ Non-Pressure Solar Water Heating
Features of Non Pressurized Solar Water Heater
1.This economic version solar water heating excludes electric heating system and controller, so it is affordable.
2.The characteristics of this non pressurized solar water heater include natural circulation, no heat transfer and high efficiency.
3.It is a kind of solar water heating system that solar collector and storage tank are on the top and the collector panel on the bottom.
4.This non pressurized solar water heater has no need of pump to push the water.
Description

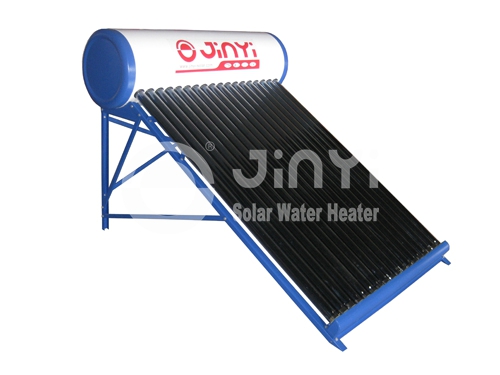

This solar water heating is composed of solar storage tank, evacuated tubes and bracket. Occasionally it needs make-up water tank. Our non pressurized solar water heater discharges the water depending on the gravity drop.
Parameters of Non-Pressure Solar Water Heating
| Model |
Area(㎡) |
Vacuum tube |
Tank and tube capacity(L) |
Person No. |
Loading Qty (set) |
| Ø(mm) |
Len(mm) |
Qty(pcs) |
20' |
40' |
40'H |
| JNZ581800-15 |
1.88 ㎡ |
58 |
1800 |
15 |
150 |
3 |
52 |
108 |
126 |
| JNZ581800-18 |
2.25 ㎡ |
58 |
1800 |
18 |
180 |
3,4 |
48 |
96 |
110 |
| JNZ581800-20 |
2.50 ㎡ |
58 |
1800 |
20 |
200 |
4 |
36 |
86 |
92 |
| JNZ581800-24 |
3.00㎡ |
58 |
1800 |
24 |
240 |
4,5 |
35 |
73 |
84 |
| JNZ581800-30 |
3.75 ㎡ |
58 |
1800 |
30 |
300 |
6 |
28 |
62 |
68 |
Attention
1.This non pressurized solar water heater relies on gravity drop to supply pressure, and the roof must have a certain height, preferably with two floors. So it can provide enough water pressure when you are bathing.
2.There is necessary to check the vacuum tubes at fixed time. Please replace it if there is broken one.
3.If this solar water heating is installed and used for the first time, please feed water in the evening or the next morning.
4.The vacuum tubes absorb much solar energy, if immediately filling the water may lead to pipe rupture.
Payment and Transportation
1.The non-pressure solar water heating can be paid by T/T and L/C.
2.Our non pressurized solar water heater is packed in cartons.
3.We transport our products by sea.
We have solar thermal collector, solar storage tank, solar water heating, accessories of solar water heaters and solar evacuated tubes for sale. Till now, we’re able to annually output 20 thousand heat pipe solar collectors, 5 thousand U pipe evacuated tube solar thermal collectors, 10 thousand solar storage tanks, 10 thousand integrated pressurized solar heaters and 30 thousand non pressurized solar water heaters. If you need our solar water heating, pleas contact us.
