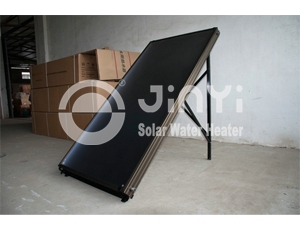

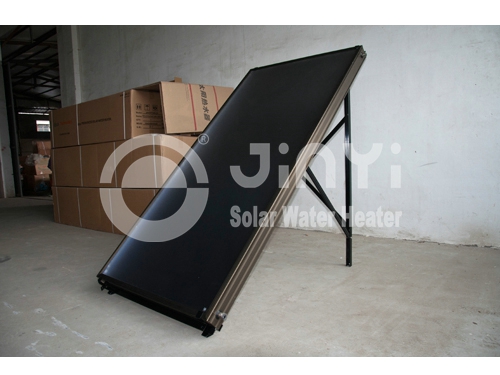

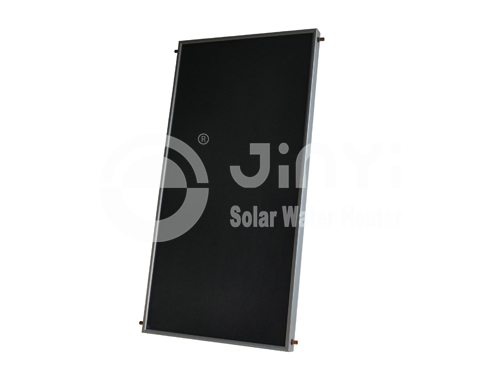

JFC-4 Flat Plate Solar Collector
Features
1.This solar heat collector is equipped with full copper plate and highly selective titanium coating.
2.Our flat plate collector with an absorption rate of over 95% has high efficiency and reliable operation.
3.The glass cover uses tempered glass with the transmittance over 85%.
4.With high pressure capacity and superior thermal insulation performance, this solar water collector is usually used for large-scale central solar hot water projects.
Application of Solar Heat Collector
The flat plate collectors are suitable for many applications, including residential water heating, commercial water heating, space heating and swimming pools.
Description
This solar heat collector is the widely used type for domestic hot water supply, and the design of the basic flat plate has been around for a long time, not all solar water collectors are designed and made alike.
The material selection and design aspects may greatly affect the solar thermal performance and the reliability when the flat plate collector is working in varied environmental conditions. We only choose the high-quality materials to guarantee the stable and efficient operation as well as the using life of our solar heat collector.
Parameters of Flat Plate Collector
| Model |
JFC-4 |
| Coating |
Blue titanium |
| Absorptance |
≥95%±2% |
| Emittance |
≤5%±2% |
| Material & thickness of glass |
Low iron tempered glass,3.2mm |
| Material & thickness of frame |
Aluminum alloy, δ=0.8-1.2mm |
| Insulation layer |
Glass wool |
| Fluid content |
2.22L |
| Working pressure |
0.6MPa |
| Riser pipe |
8pcs |
As a professional solar heat collector manufacturer and supplier, we offer our clients various kinds of solar collectors, such as flat plate collector, solar thermal collector, heat pipe solar collector, U pipe evacuated tube collector and non-pressure solar water collector. Additionally, we provide solar storage tank, solar water heater and solar vacuum tubes. If you are interested in our solar heat collector, please visit our website or contact us directly.
